Product Description
Wireless AC2200 Tri-band Gigabit PoE Access Point
• High combined data rates of 1167 Mbps (AC 867 Mbps + N 300 Mbps) over the air
• Beamforming technology Bandsteering for efficient traffic management
• Support 8 units to form a self-configuring cluster to enable effortless provisioning
• Up to 32 virtual access points (VAP) may be created from a single access point
• WMM Quality of Service (QOS) makes an ideal AP for audio, video, and voice application.
• Up to 16 SSIDs per frequency band and 32 SSIDs per AP
• 802.3at Power Over Gigabit Ethernet enables installation at hard to reach locations
• Support Dynamic Auto-Channel Selection in Standalone mode
• Support Load balancing to optimise high network traffic volume and redundancy
• Automatic RF Adjustment and Auto Power management in densely AP deployment
Description
Performance without Compromise
Incorporating the latest leading Wireless AC Chipset, the DWL-6610AP delivers a maximum combined wireless speed of 1200 Mbps, up to 4x the performance of Wireless N*.
Broadcast on 32 SSID Simultaneously
Supports up to 32 SSIDs, 16 per radio, including station isolation.
Band Steering offered as Standard
With band steering, the DWL-6610AP detects whether or not the wireless client is dual-band capable, and if so, it pushes the client to connect to the less congested 5 Ghz band. It does this by actively blocking the client’s attempts to associate with the 2.4 Ghz network.

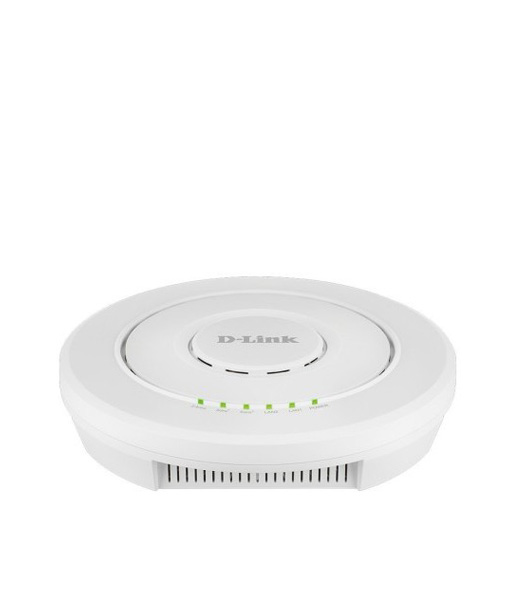

Smart Design
Designed to look like a smoke detector it can be mounted easily onto any wall or ceiling without looking out of place in an office or home. Enclosed in a plenum-rated UL2043 certified housing, the DWL-6610AP adheres to strict fire codes for placement in air passageways.
Versatility built as Standard
Whether you intend to use a single Access Point or roll out a large corporate network, the DWL-6610AP coupled with a D-Link Wireless Controller or Unified Switch makes managing your wireless network simple.
Secure and Green Design
The DWL-6610AP has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.
Fast Seamless Roaming
Combining the DWL-6610AP with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.
Managed using D-Link’s Unified Wireless Controller or Wireless Switch
D-Link’s Unified Wireless Access Points can be managed using a D-Link Wireless Controller or Unified Switch.
Simultaneous Dual-Band Wireless
Supports up to 867 Mbps 2×2 MIMO for the 5Ghz band and up to 300Mbps 2×2 MIMO for the 2.4Ghz band
*When compared to Wireless N300
Returns and Exchanges
There are a few important things to keep in mind when returning a product you purchased.You can return unwanted items by post within 7 working days of receipt of your goods.
- You have 14 calendar days to return an item from the date you received it.
- Only items that have been purchased directly from Us.
- Please ensure that the item you are returning is repackaged with all elements.
Ship your item back to Us
Firstly Print and return this Returns Form to:
30 South Park Avenue, San Francisco, CA 94108, USA
Please remember to ensure that the item you are returning is repackaged with all elements.
For more information, view our full Returns and Exchanges information.
Related Products
Wireless AC2200 Tri-band Gigabit PoE Access Point
Wireless AC2200 Tri-band Gigabit PoE Access Point
• High combined data rates of 1167 Mbps (AC 867 Mbps + N 300 Mbps) over the air
• Beamforming technology Bandsteering for efficient traffic management
• Support 8 units to form a self-configuring cluster to enable effortless provisioning
• Up to 32 virtual access points (VAP) may be created from a single access point
• WMM Quality of Service (QOS) makes an ideal AP for audio, video, and voice application.
• Up to 16 SSIDs per frequency band and 32 SSIDs per AP
• 802.3at Power Over Gigabit Ethernet enables installation at hard to reach locations
• Support Dynamic Auto-Channel Selection in Standalone mode
• Support Load balancing to optimise high network traffic volume and redundancy
• Automatic RF Adjustment and Auto Power management in densely AP deployment
Performance without Compromise
Incorporating the latest leading Wireless AC Chipset, the DWL-6610AP delivers a maximum combined wireless speed of 1200 Mbps, up to 4x the performance of Wireless N*.
Broadcast on 32 SSID Simultaneously
Supports up to 32 SSIDs, 16 per radio, including station isolation.
Band Steering offered as Standard
With band steering, the DWL-6610AP detects whether or not the wireless client is dual-band capable, and if so, it pushes the client to connect to the less congested 5 Ghz band. It does this by actively blocking the client’s attempts to associate with the 2.4 Ghz network.
Smart Design
Designed to look like a smoke detector it can be mounted easily onto any wall or ceiling without looking out of place in an office or home. Enclosed in a plenum-rated UL2043 certified housing, the DWL-6610AP adheres to strict fire codes for placement in air passageways.
Versatility built as Standard
Whether you intend to use a single Access Point or roll out a large corporate network, the DWL-6610AP coupled with a D-Link Wireless Controller or Unified Switch makes managing your wireless network simple.
Secure and Green Design
The DWL-6610AP has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.
Fast Seamless Roaming
Combining the DWL-6610AP with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.
Managed using D-Link’s Unified Wireless Controller or Wireless Switch
D-Link’s Unified Wireless Access Points can be managed using a D-Link Wireless Controller or Unified Switch.
Simultaneous Dual-Band Wireless
Supports up to 867 Mbps 2×2 MIMO for the 5Ghz band and up to 300Mbps 2×2 MIMO for the 2.4Ghz band
*When compared to Wireless N300
Specifications
Ideal for Business | ||
Self-configuring cluster, enabling effortless provisioning | Up to 32 virtual access points may be created from a single access point Flexible QoS with WMM 802.3at Power Over Ethernet enables installation in hard to reach locations |
|
High Performance Connectivity | Beamforming technology Bandsteering for efficient traffic management Dual Gigabit Ethernet LAN port UL2043 certified chassis (Plenum-rated SKU) Up to 8 DWL-6610AP units may form a self-configuring cluster |
|
Trusted Security | WPA/WPA2 Personal WPA/WPA2 Enterprise MAC address filtering Rogue AP detection |
|
Technical Specifications | ||
Interfaces | 802.11b/g/n 2.4 GHz wireless 802.11ac 5 GHz wireless One 10/100/1000 LAN port RJ45 console port Factory reset button Power switch Power connector |
|
Antenna | Internal omnidirectional antenna. 6.5 dBi for 5 GHz, 5 dBi for 2.4 GHz |
|
Operating Channel | 2.4 / 5 GHz 11 channels for United States 13 channels for Europe 13 channels for Japan |
|
Web-based User Interface | HTTP/HTTPS | |
Command Line | RJ45 Serial Console Telnet/ SSH SNMP |
|
SSID Security | Up to 32 SSIDs, 16 per radio 802.1Q VLAN Station Isolation |
|
Wireless Security | WPA Personal/ Enterprise AES and TKIP |
|
Detection & Prevention | Rogue and Valid AP Classification | |
Authentication | MAC Address Filtering | |
Dimensions | 158.79 x 69.39 mm w/o bracket (6.25 x 2.73 in.) | |
Weight | 500 grams (1.1 lbs) | |
Power Adapter | Input: 100 to 240 V AC Output: 12 V DC, 2 A |
|
Power over Ethernet | 10/100/1000 Mbps PoE (802.3at) input | |
Power Method | Powered by PoE or 12 V / 2 A | |
Enclosure | Bottom cover – plastic Top cover – plastic UL2043 certified chassis |
|
Temperature | Operating: 0 to 40 °C (32 to 104 °F) Storage: -20 to 65 °C (-4 to 149 °F) |
|
Humidity | Operating: 10% to 90% non-condensing | |
Certifications | CE EN 301 893 V1.7.1 (2012-06) (DFS/TPC) EN 300 328 V1.8.1 (2012-06) FCC IC cUL LVD UL2043 (for plenum-rated SKU only) C-Tick BSM NCC Wi-Fi |
