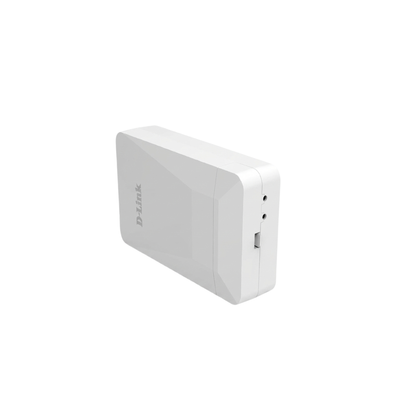

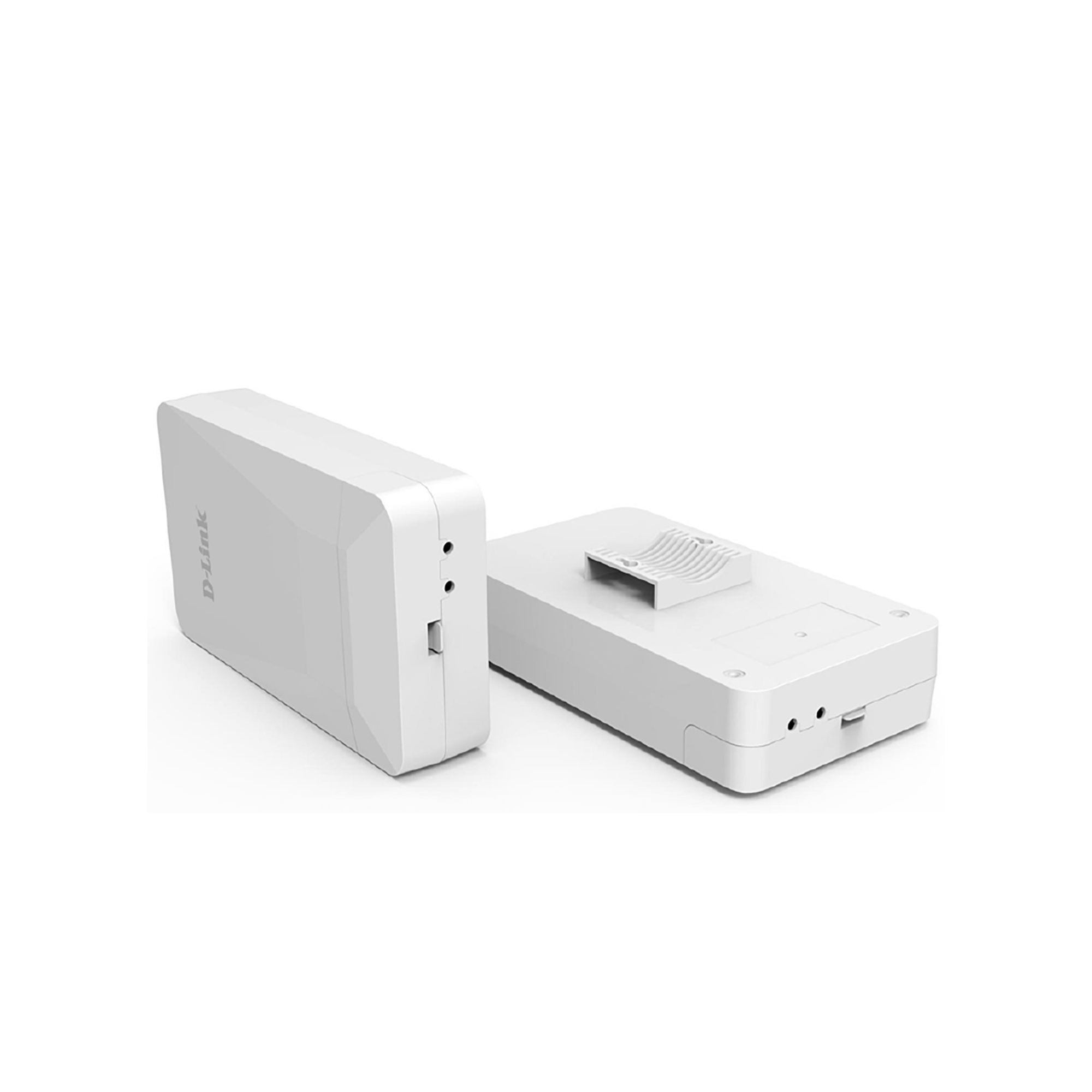

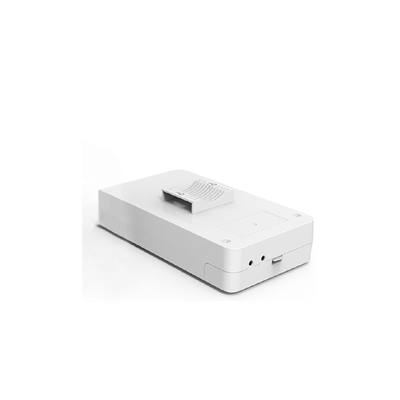

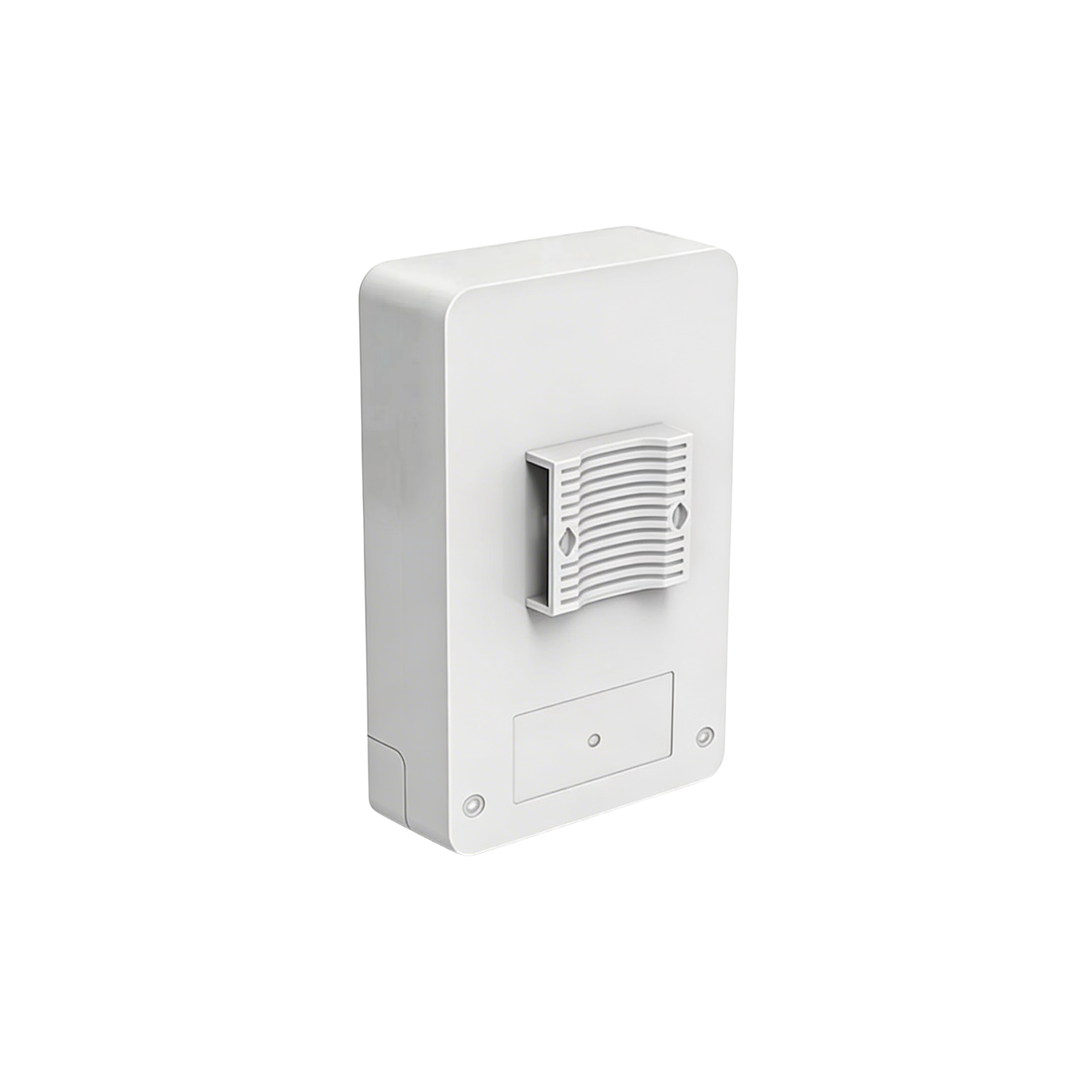

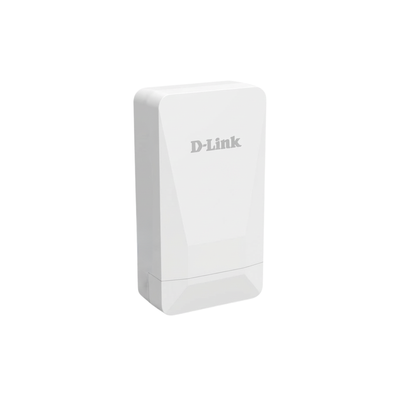

DWP-403W

Transform Your Network With Next-Gen Connectivity

  • 4G LTE Wi-Fi 6 AX300
  • IP65 design for water and dust resistance, perfect for outdoor applications
  • One 10/100 Ethernet LAN port to connect to POE injector or IDU
  • ABS fireproof plastic material shell
  • Built-in 4G antenna design
  • Easy-to-use web interface for advanced configuration

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80
Downloads Datasheet

Extend Reliable Internet to Outdoor Environments

The DWP-403W Wi-Fi 6 Outdoor 4G Router combines LTE connectivity with Wi-Fi 6 wireless performance, delivering fast and stable internet for outdoor deployments.

With download speeds up to 150 Mbps and AX300 wireless connectivity, the router provides dependable network access for surveillance systems, remote offices, construction sites, and outdoor monitoring applications.

Tech Specifications

Hardware
Device Interfaces
  • 1 x 10/100 Ethernet port
  • 4 x LED indicators ( PWR, SYS,NET,WIFI)
  • 1 x Nano SIM slot
  • 1 x reset button
Hardware version

• A1

Power protection

• ±1 kV

Wireless
Wireless
Antenna Type
  • 2 x internal 4G antennas
  • 1 x internal Wi-Fi antenna
LTE Standards

• LTE Cat.4 (DL150Mbps / UL50Mbps)

LTE Frequency

• LTE: B1/B3/B5/B7/B8/B28/B38/B40/B41

• WCDMA: B1/B5/B8

Wi-Fi Data Rate

• WIFI 6 2.4 GHz: Up to AX300 Mbps ( Support up to 32 Clients )

Wireless Mode
  • Access Point ( AP)
General
Security Protocols
  • WPA/WPA2 - Personal
  • WPA3 - Personal
Firewall
  • Support flexible access control of ICMP packets.
  • Supports port Mapping, NAT etc feature.
Protocols
  • IPv4
  • IPv6
Power Consumption

• Max 3.2W @24V

Package Content

• 1 x DWP-403W

• 1 x Power Adapter

• 1 x Passive PoE Injector

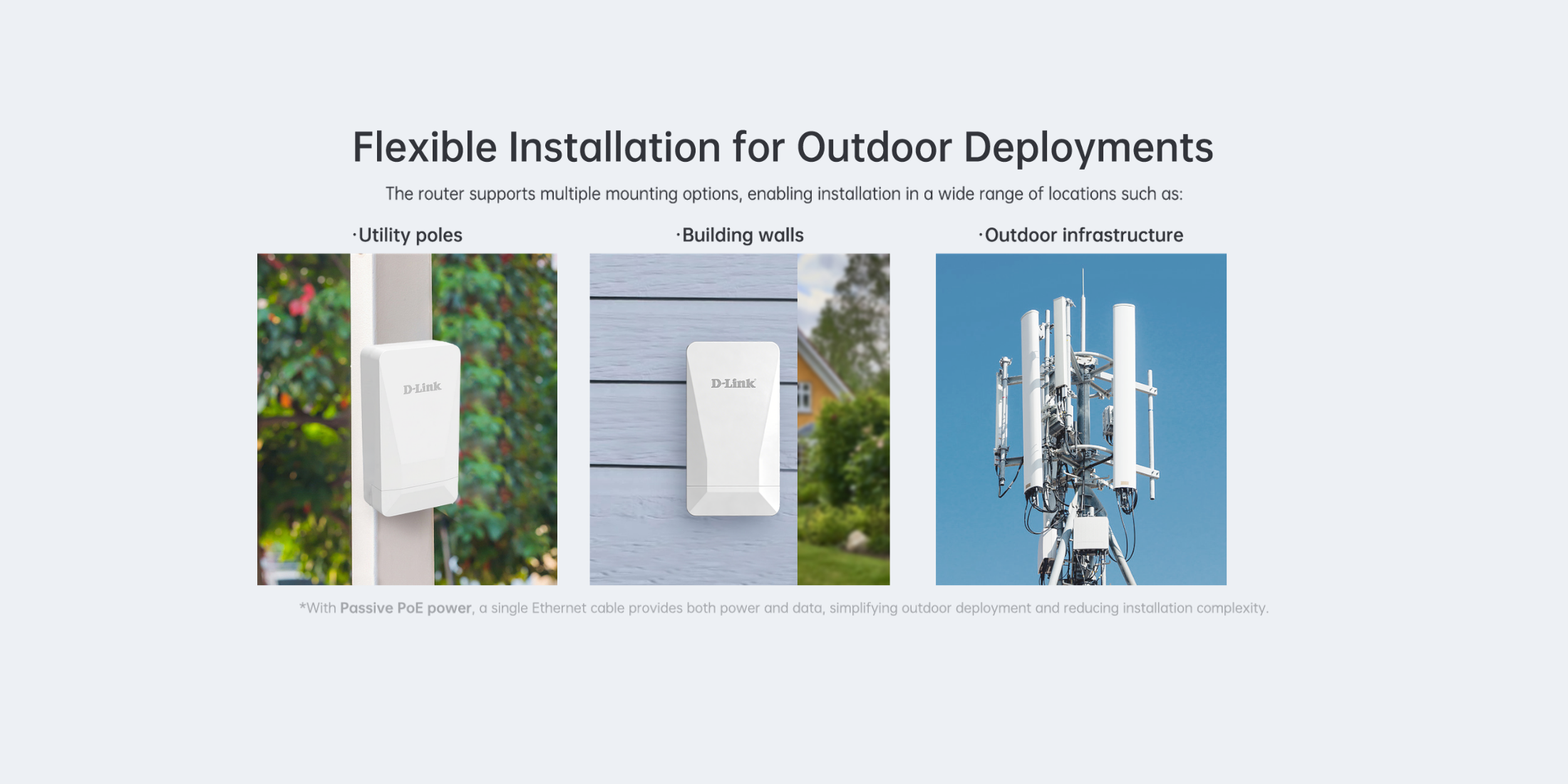

• 1 x Pole Mounting Kit ( Pole Mounting Strap )

• 1 x Wall Mounting Kit ( Plastic Wall Anchors, Self-tapping Screws )

• 1 x RJ45 cable

• 1 x QIG

Certification

• CE

Physical
Dimension

• 250 x 145 x 67.5 mm

Weight

• 600g

Enclosure

• IP65

Operating Temperature

• -10 to 60 °C

Storage Temperature

• -20 to 70 °C

Humidity

• 5% to 95% non-condensing
