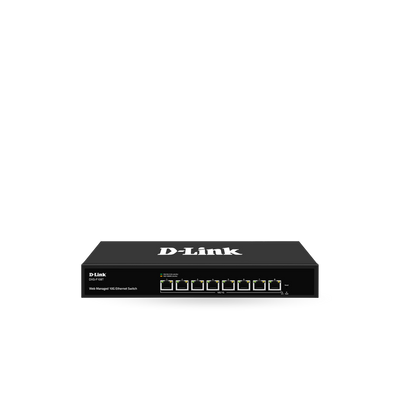

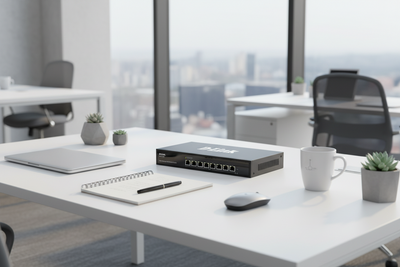

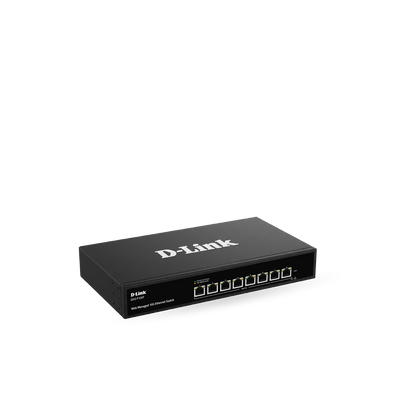

8-port 10G Smart Switch
8-port 10G Smart Switch
8-port 10G Smart Switch
8-port 10G Smart Switch

8-port 10G Smart Switch

Sale priceRp 329,00Regular price Rp 399,00
SKU
  • Supports 8 *10 Gigabit RJ45 ports
  • Supports IEEE802.3/u/x/ab/az/ae/bz
  • RJ45 port supports 100M/1G/2.5G/5G/10G adaptive
  • Supports automatic port flipping (Auto MDI/MDIX)
  • Adopting a storage and forwarding exchange mechanism
  • All ports support line speed switching
  • The panel indicator lights will monitor the working status and assist in fault analysis
  • Support QoS data priority
  • Support web management

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80
Downloads Datasheet

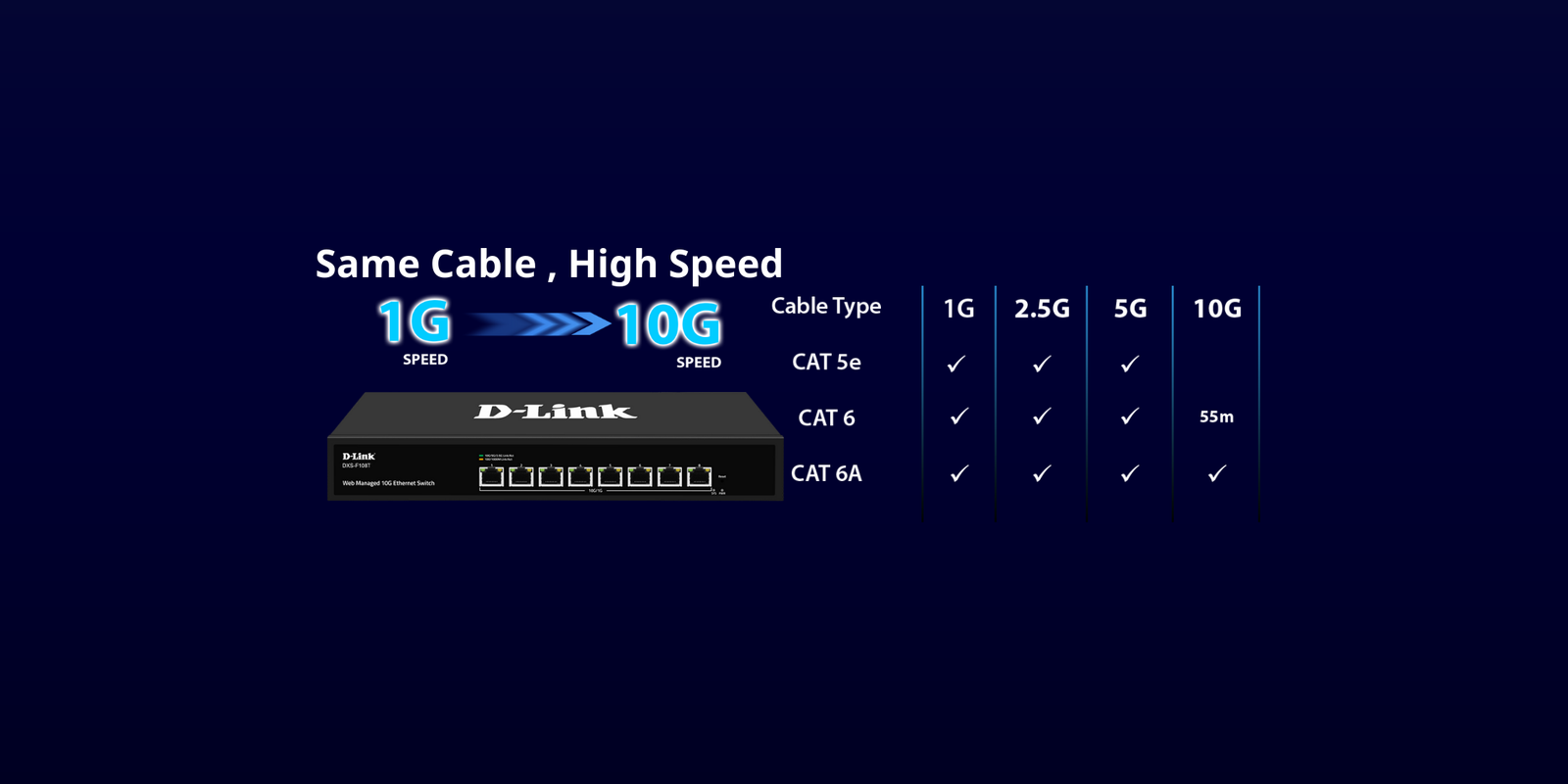

Highest Performance of 10G/Multi-Gig Bandwidth and Devices

Meet the DXS-F108T, the ultimate web-managed 10G switch engineered for businesses that demand lightning-fast data throughput, intelligent control, and rock-solid stability.

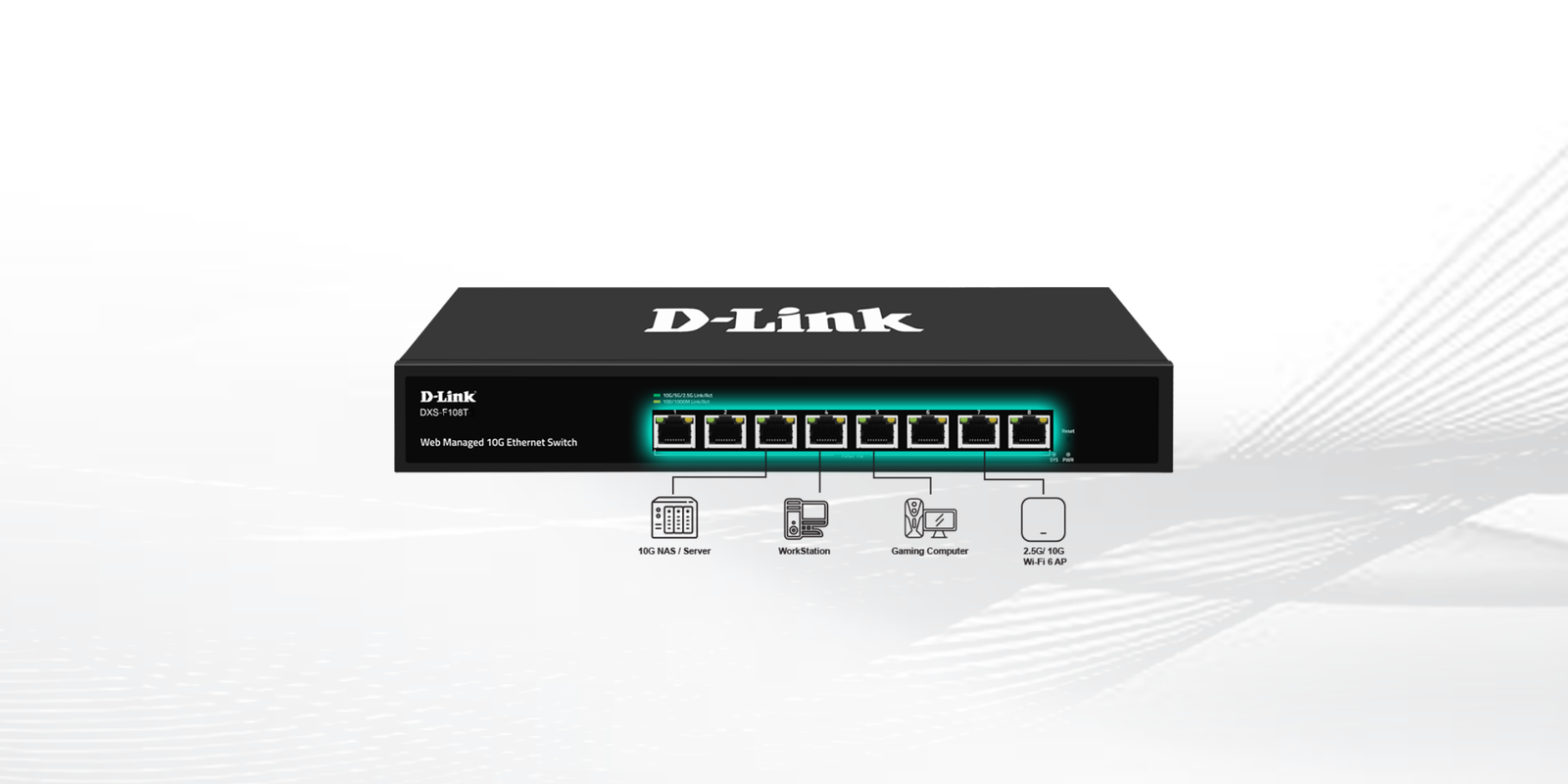

With 8 adaptive 10G RJ45 ports and a suite of enterprise-grade features, this switch delivers unmatched performance in modern network environments.

Building New Gen 10G Infrastructure for your HOME and OFFICE

Super-Speed Connections for Business and Home Office

Ready for Immediate Network Upgrading to 10G?

Reliable, lighting-fast connections and the lowest possible latency make it ideal for gaming and small office and home office use.

Tech Specifications

Hardware
Interface

• 8*10G RJ45 port

Port Standard

• IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3i:

• 10BASE-T Ethernet

• IEEE 802.3u: 100BASE-TX Fast Ethernet

• IEEE 802.3ab: 1000BASE-T Gigabit Ethernet

• IEEE 802.3x:Flow Control

• IEEE 802.3az (Efficient and Energy saving Ethernet)

• IEEE 802.3ae (10 Gigabit Ethernet)

• IEEE802.3 bz (2.5G/5G Ethernet standard)

Switching Capacity

• 160Gbps

Packet Forwarding Rate

• 119.04Mpps

Packet Buffer

• 12Mbit

MAC Address Table

• 16K

Jumbo Frame

• Support

VLAN

• VLAN range 1-4094, maximum active VLAN is 4K

Transmission Method

• Store and Forward

General
Surge Protection

• Surge protection: common mode 6KV(Class C)

• Electrostatic ESD: Air 8KV, Contact 6KV (Class C)

Operating Temperature

• 0 ~ 40°C

Storage Temperature

• -40 °C to 70 °C

Operation Humidity

• 10% ~ 90%，non condensing

Storage Humidity

• 5% ~ 95%，non condensing

Power Supply

• AC 100-240V 50/60Hz DC

• 12V 8A

Mainboard Power Consumption

• 13.8W

Physical
Structure Information

• Product Dimensions:320*207*45mm

• Packaging Dimensions:370*290*85mm

• Product Net Weight: 1.82KG

Fan Quantity

• 1

Installation

• Desktop
