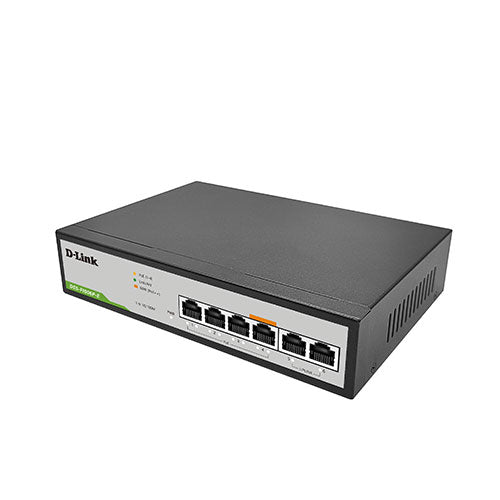

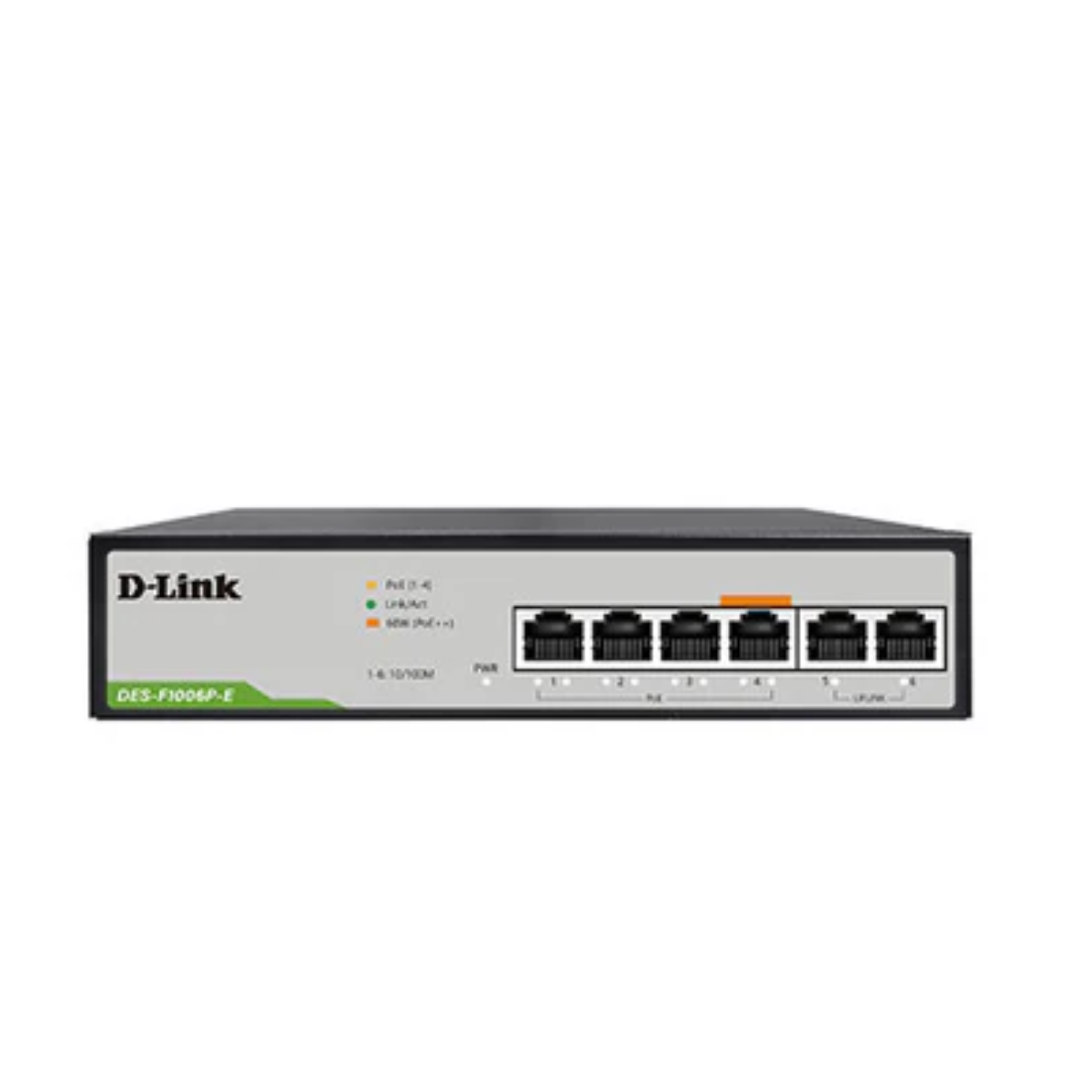

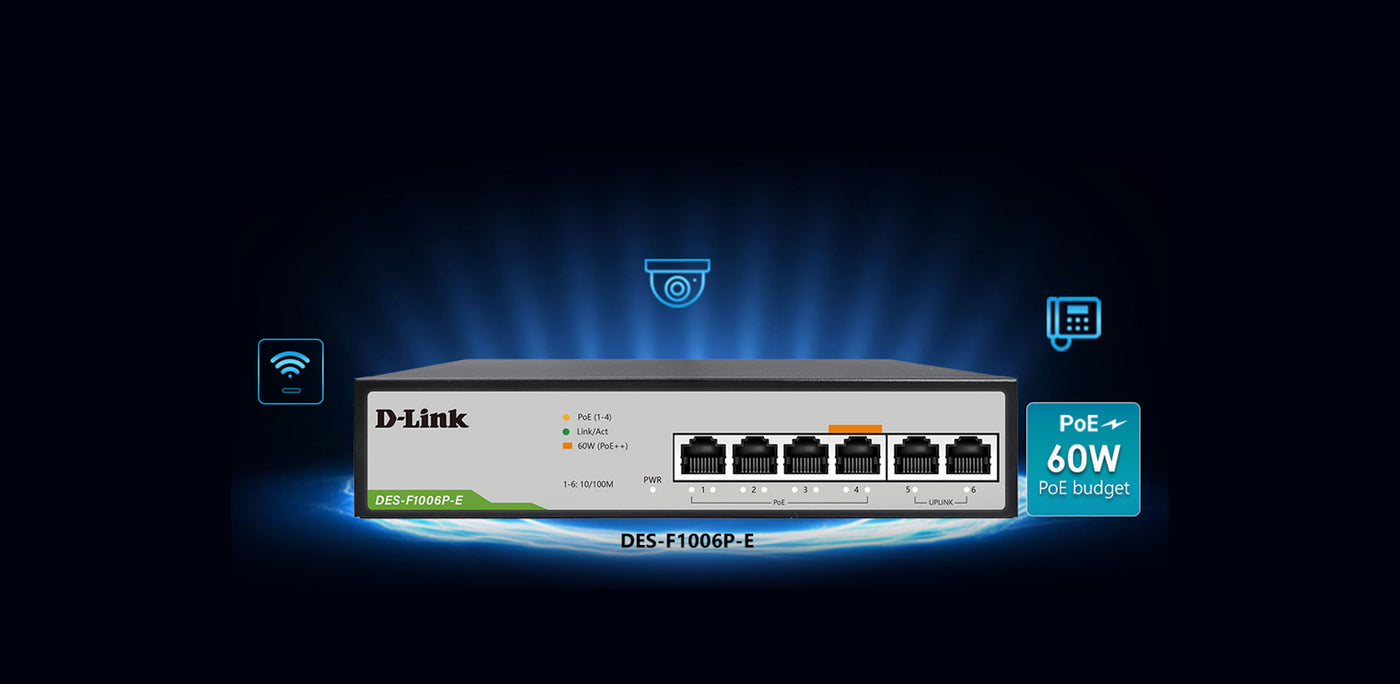

250M 6-port 10/100 switch with 4 PoE Ports and 2 Uplink Ports
250M 6-port 10/100 switch with 4 PoE Ports and 2 Uplink Ports
250M 6-port 10/100 switch with 4 PoE Ports and 2 Uplink Ports

250M 6-port 10/100 switch with 4 PoE Ports and 2 Uplink Ports

Rp 395.000,00
DES-F1006P-E
  • 4 10/100 Mbps PoE ports
  • 2 10/100Mbps uplink ports
  • 60W PoE budget
  • Supports IEEE 802.3af/at PoE to Power PoE capable network devices
  • Supports transmission distance up to 250M
  • Lightning protection 6KV
  • Smart Features: Extend, VLAN, QoS and PoE
  • Plug & Play Installation

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80
Downloads Datasheet

Key Features

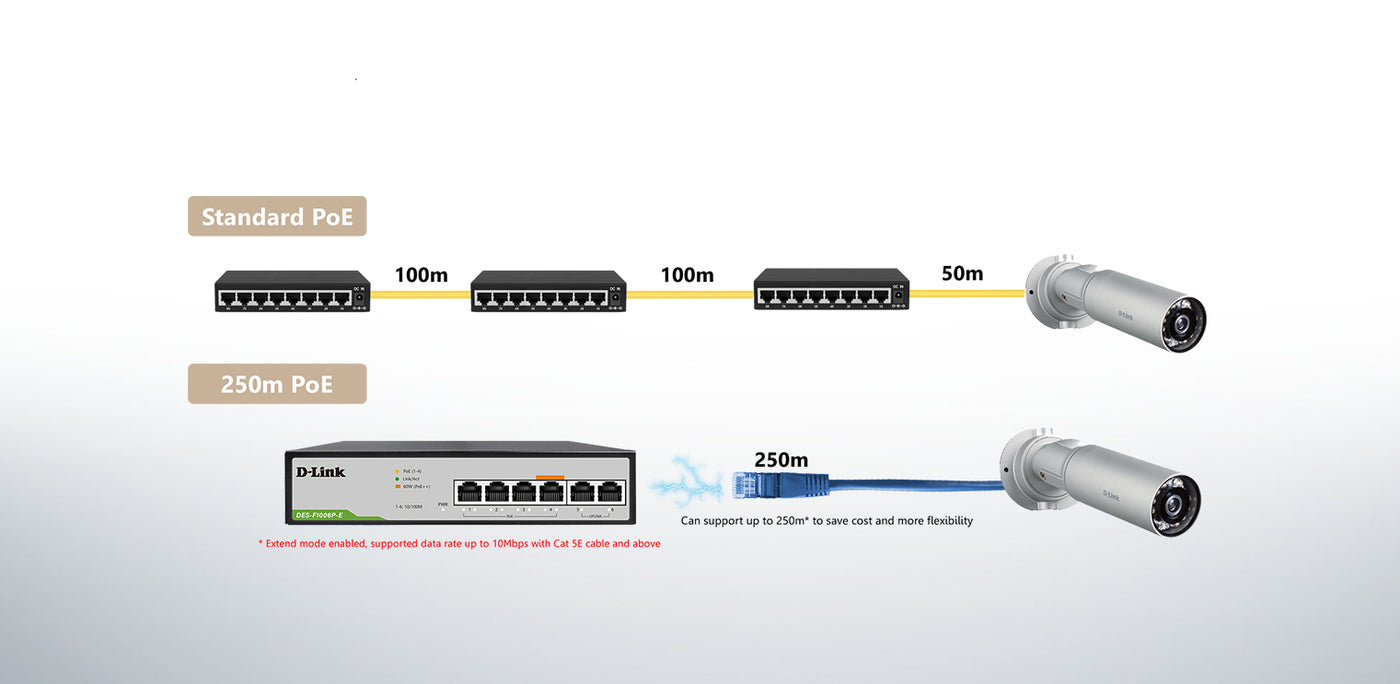

Up to 250m PoE and Data Transmission

Equipped with PoE extend technology, DES-F1006P-E have the capability to supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long distance solution

6KV Surge Protection

D-Link DES-F1006P-E is enhanced with 6KV surge protection
Effectively guard equipment from lighting damage especially if use on AP/IP camera install outdoor or at higher position

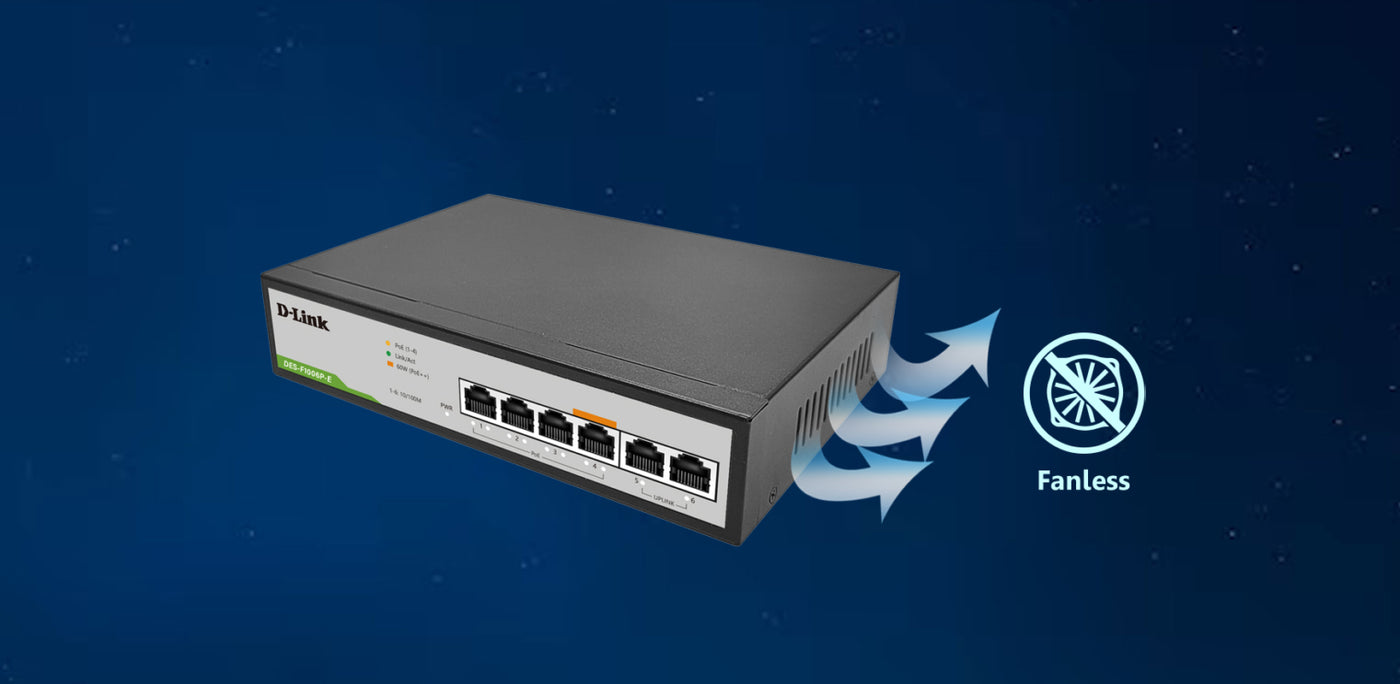

Fanless Design

The fanless design means zero added noise wherever its located, making it ideal for
noise-sensitive environments

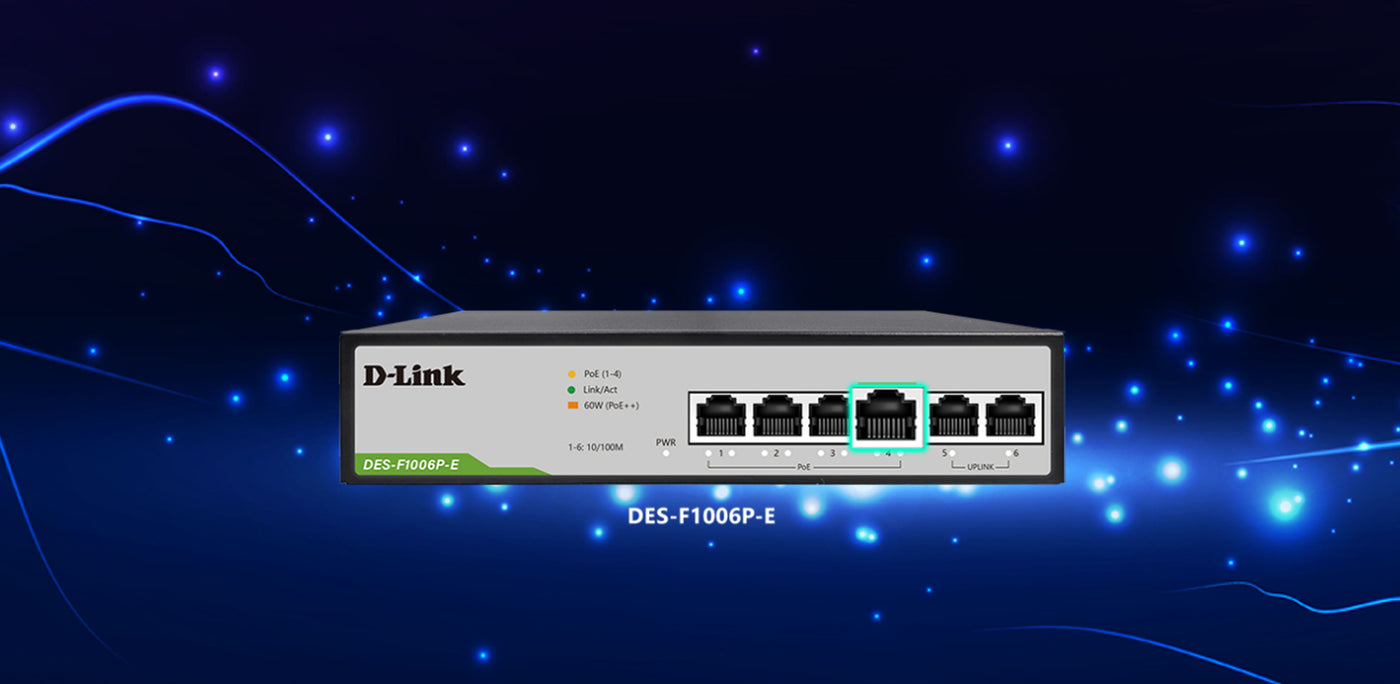

802.3bt ( 60W ) ​

Supports PoE Powered Device (PD) up to 60W

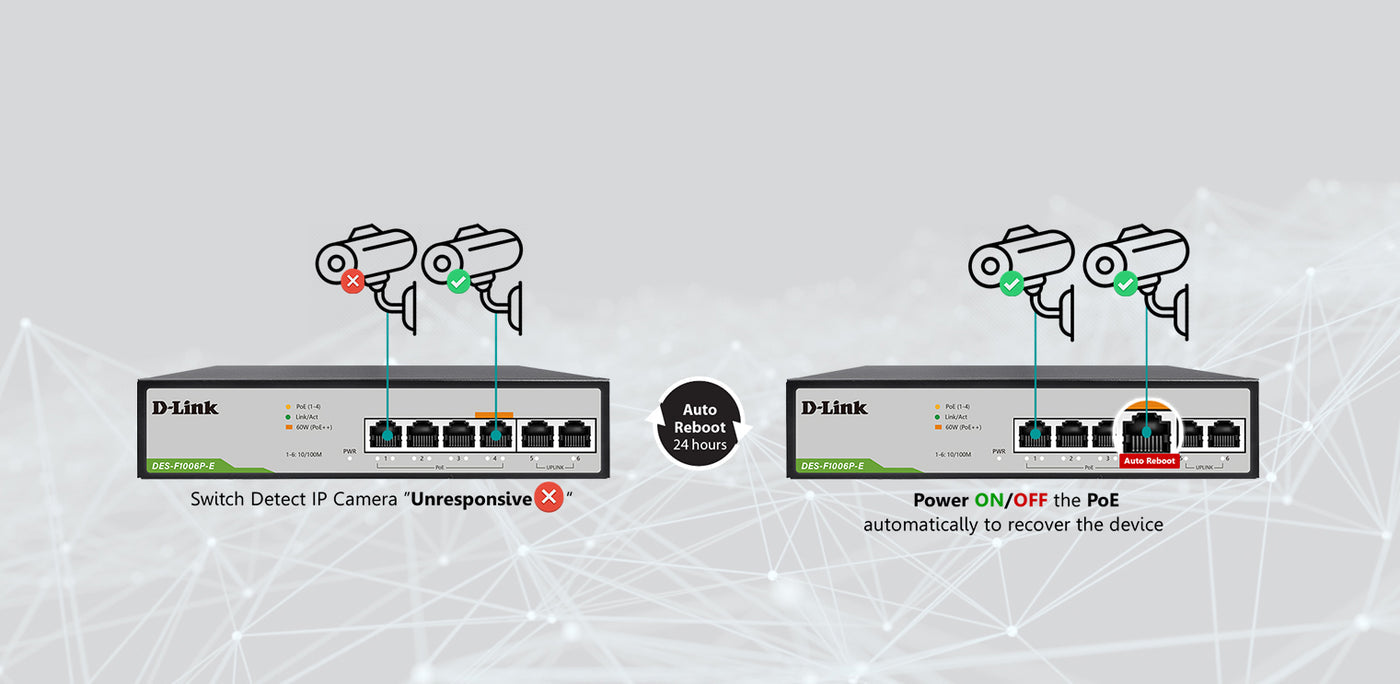

Intelligent Detection

Automatically Detect unresponsive PoE device and reboot the device for recovery

Energy Efficient

Designed to optimize power usage lowering
its cost to operate.

Tech Specifications

Hardware
Hardware Version

•H3

Number of Ports

•4 x 10/100Mbps (PoE | RJ-45)
• 2 x 10/100Mbps (RJ-45)

Port Standards

•IEEE 802.3i for Ethernet
• IEEE 802.3u for Fast Ethernet
• IEEE 802.3af/at/bt
• Auto-negotiation
• Supports half/full-duplex operation
• Auto MDI/MDIX
• IEEE 802.3x Flow Control supports full-duplex mode

PoE Standards

•IEEE 802.3af/ 802.3at (Port 1-3)

•IEEE 802.3af/ 802.3at /802.3bt (Port 4 | 60 Watts)

PoE Capable Ports

•Ports 1 to 4

250m Extended Distance (Up to 10Mbps)

•Port 1 - 4 (Auto Detection)

Watchdog (WDG)

•Port 1 - 4 (Auto Detection)

Standby Mode

•2W

Maximum Power Consumption

•65 W (PoE On)

Power Input

• 100 to 240 V AC
• 50 to 60 Hz Internal Power Supply

Ventilation

•Fanless

The 250m long range mode is subject to cabling quality and/or IP camera’s electrical design. Compatibility testing is recommended prior to use.
UTP CAT5e rated cables (or higher) are required.

General

6kV Lightning Protection

•6 x 10/100Mbps (RJ-45)

Switching Capacity

•1.2 Gbps

Transmission Method

•Store-and-forward

Maximum Forwarding Rate

•0.89Mpps per switch
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port

MAC Address Table Size

•2K Entries

Packet Buffer (if any)

•1Mbits

PoE Power Budget (Per Switch)

• 60 Watts

Operating Temperature

•0 °C to 40 °C

Storage Temperature

• -40 °C to 70 °C

Operating Humidity

• 10% to 90% non condensing

Storage Humidity

•5% to 90% non-condensing

EMI

• FCC CFR47 Part 15, EN55022/CISPR22, Class A

Safety

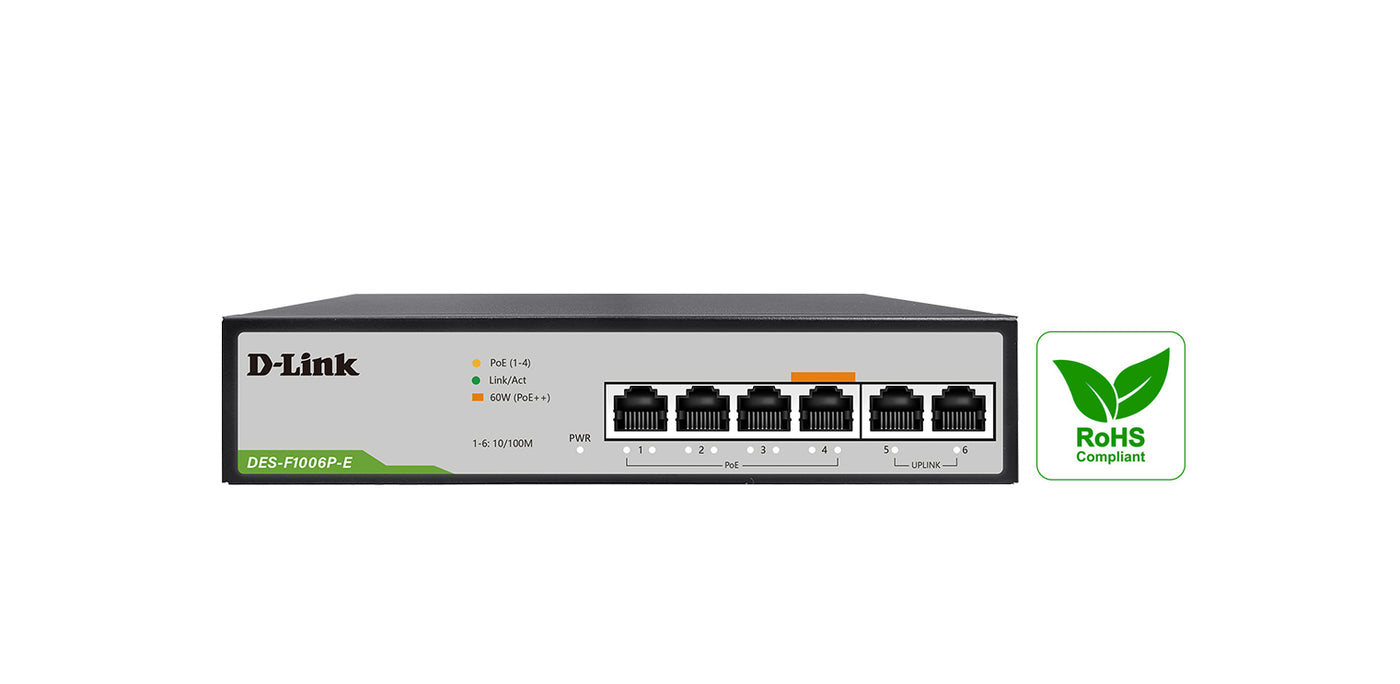

• CE / RoHS / FCC

Physical
Size

•Desktop

Weight

•1 kg

Dimensions

• 190 x 131 x 40m (LxWxH)
