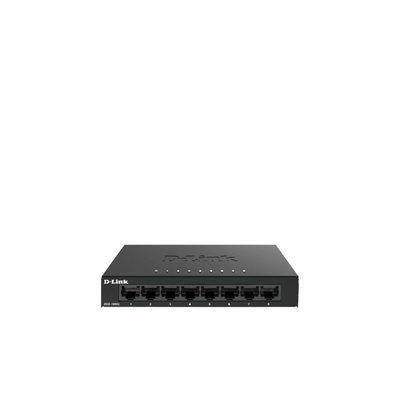

8-Port Gigabit Unmanaged Desktop Switch in metal casing
8-Port Gigabit Unmanaged Desktop Switch in metal casing
8-Port Gigabit Unmanaged Desktop Switch in metal casing

8-Port Gigabit Unmanaged Desktop Switch in metal casing

Rp 337.000,00
DGS-108GL
  • 8 Gigabit Ethernet ports
  • Metal casing
  • Energy efficient
  • Fanless
  • Plug & Play Installation

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80
Downloads Datasheet

Slim Dimensions, Hefty Performance

The DGS-105GL 5 Port Gigabit Unmanaged Desktop Switch is ideal for home offices or small to medium-sized businesses (SMB) to add a quick and easy Gigabit upgrade to the network. Fully IEEE 802.3az-compliant with advanced energy-saving features, the DGS-105GL packs full functionality and Gigabit performance into a slim yet sturdy metal design.

Ready To Serve For Years To Come

The DGS-105GL features a fanless design for silent operation, reduced energy consumption, and enhanced reliability by eliminating a common point of failure for an extended product life.

Prioritize What’s Important with Quality of Service

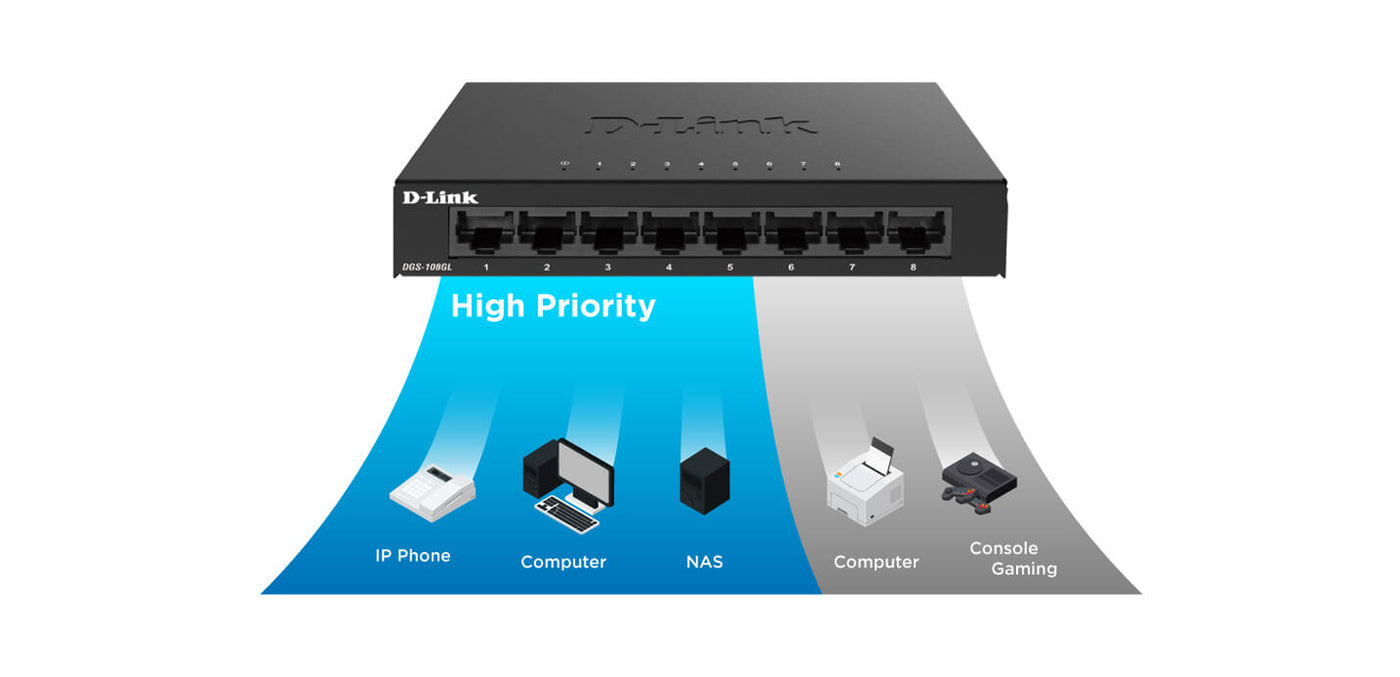

Quality of Service (QoS) support enhances your network’s efficiency. QoS cleverly prioritizes network traffic so that time-sensitive data—such as VoIP or data to and from your NAS—is unaffected even during bursts of high-volume traffic. This allows for an all-round smoother, uninterrupted network experience.

Setup That Doesn’t Dent Your Productivity

Expanding your network shouldn’t take a whole morning of navigating complex setup software. Simply place the DGS-105GL on a desktop or conveniently wall mount, connect it to your network via Ethernet cables and you’re set.

Tech Specifications

Hardware
Device Interfaces

•8 x 10/100/1000 Mbps LAN ports

Standards

•IEEE 802.3 10BASE-T
•IEEE 802.3u 100BASE-TX
•IEEE 802.3ab 1000BASE-T
•IEEE 802.3x Flow Control
•IEEE 802.1p QoS
•IEEE 802.3az Energy-Efficient Ethernet (EEE)

Switching Capacity

•16 Gbps switching fabric

Transmission Method

•Store-and-forward

MAC Address Table Size

•4K

Packet Filtering/Forwarding Rates

•Ethernet: 14,880 pps per port
•Fast Ethernet: 148,800 pps per port
•Gigabit Ethernet:1,488,000 pps per port

General

Certifications

•CE
•FCC
• RoHS

Physical
LED Indicators

•Per port: Link/Activity
•Per device: Power

Dimensions

• 140 x 67 x 26 mm (5.51 x 2.64 x 1.02 inches)

Weight

• 240 g

Power

•DC 5 V / 1 A

Power Consumption

•Maximum: 4.31 watts

Temperature

•Operating: 0 to 40 °C (32 to 104 °F)
•Storage: -10 to 70 °C (14 to 158 °F)


Humidity

•Operating: 10% to 90% non-condensing
•Storage: 5% to 95% non-condensing
